Sample Holders

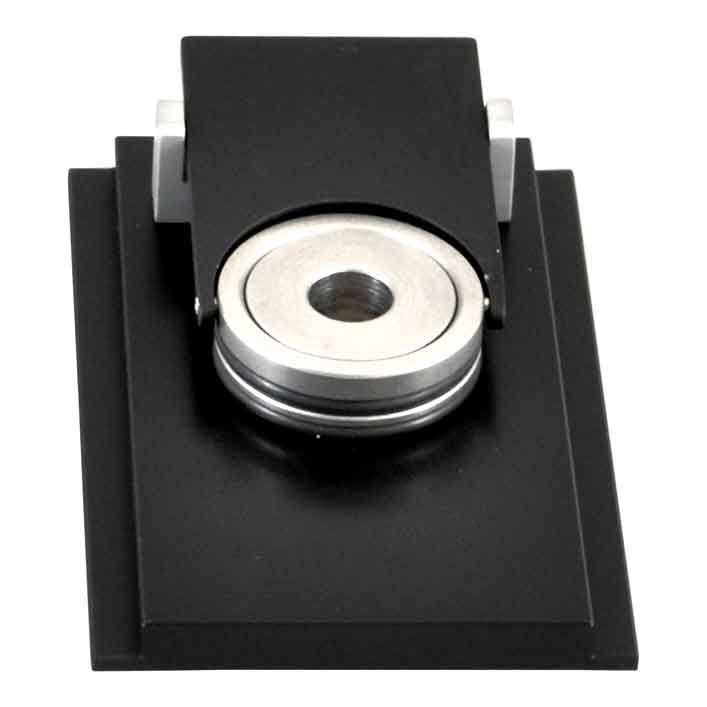

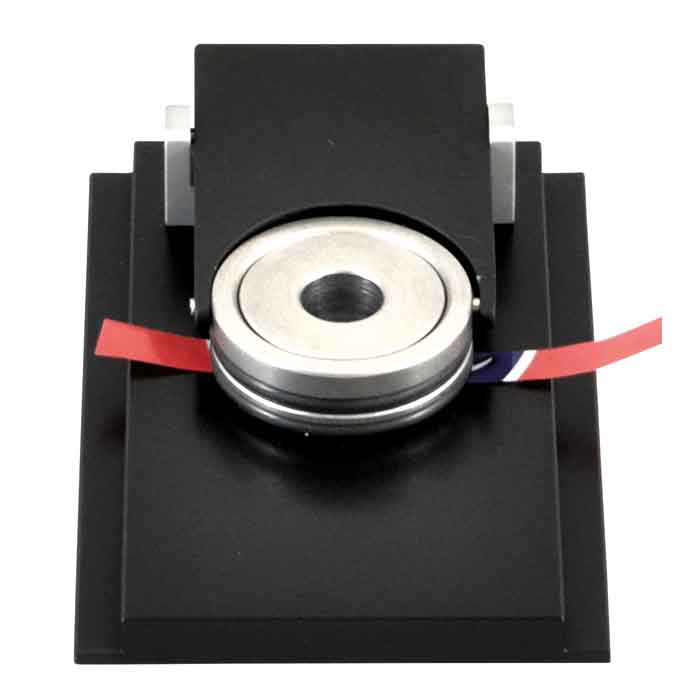

This is a versatile all-round sample holder for transmission analysis.

You can use it for films, pellets, windows, mulls, etc in sample sizes from 13 up to 40 mm diameter and 13 mm thickness.

• The 10 mm aperture is removable and can be unscrewed to provide a 22 mm aperture

• A thumbscrew provides adjustable pressure on the clip

• Standard sized back plate (87mm x 50mm) fits all spectrometers

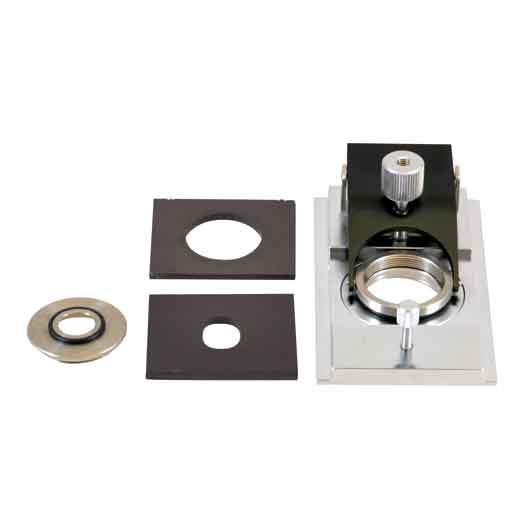

Multi functional sample holder for pellets, fibers, films and filters for Transmission & ATR-FTIR measurements.

The EZ-Clamp Holder combines two aperture sizes (8 mm and 20 mm) and an additional insert for clamping taut films and filters in one holder.

• Use it for ATR-FTIR measurements with your
  FTIR  microscope

• Use it for transmission measurements with your
  FTIR spectrometer

•  Standard sized back plate (75mm x 50mm) fits all spectrometers

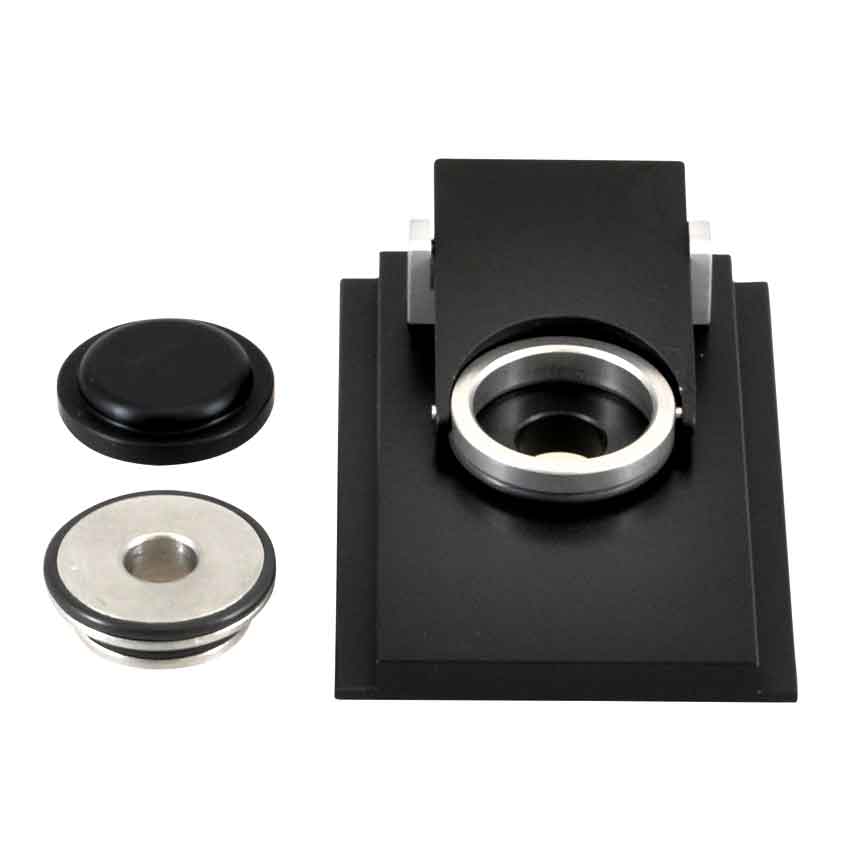

Sample holder designed to hold collars for 1, 3, 7, and 13mm Kbr pellets.

• Easy positioning of the sample collar on a removable mount with a half moon cut-out

• Magnetic back plate holds the sample in place

• An opening at the top end of the holder is used for
  13 mm pellets

• Standard sized back plate (87mm x 50mm) fits all spectrometers

Combines perfectly with our Kbr-Table press!

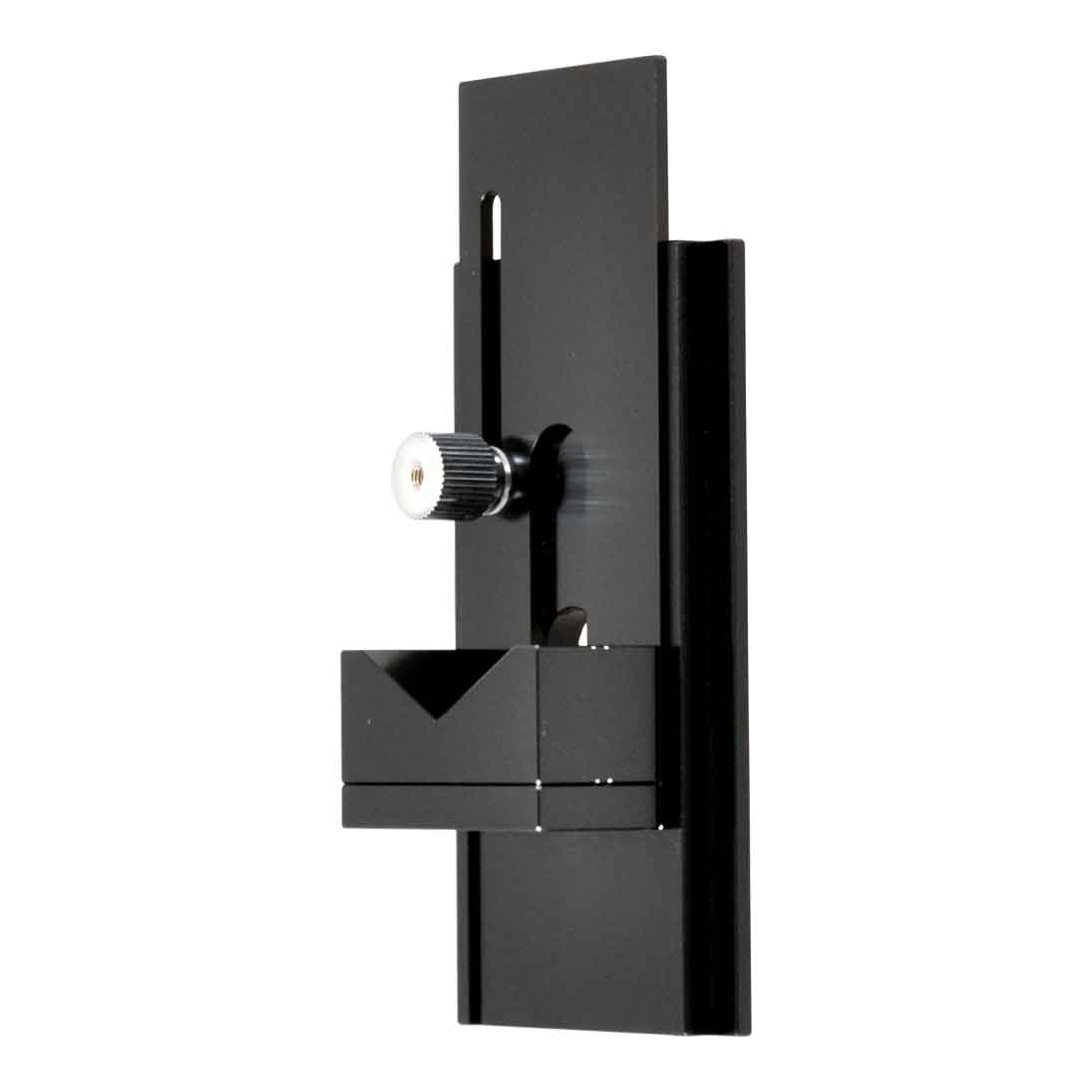

Sample holder for liquid samples, cuvettes and pellets.

• Base and positioning mount can be slid up & down in order to position the sample correctly according to its specific size and form

• Can be used for IR, UV, NIR and Raman

• Standard sized back plate (87mm x 50mm)fits all spectrometers

Basic and easy-to-use sample holders to effortlessly hold windows, pellets and films in place for measurement.

• Spring loaded clip holds samples firmly in place

• EZ-Clip 20 mm is best for holding windows & films

• EZ-Clip 8 mm is best for holding pellets

• Standard sized back plate (87mm x 50mm) fits all spectrometers
